Description

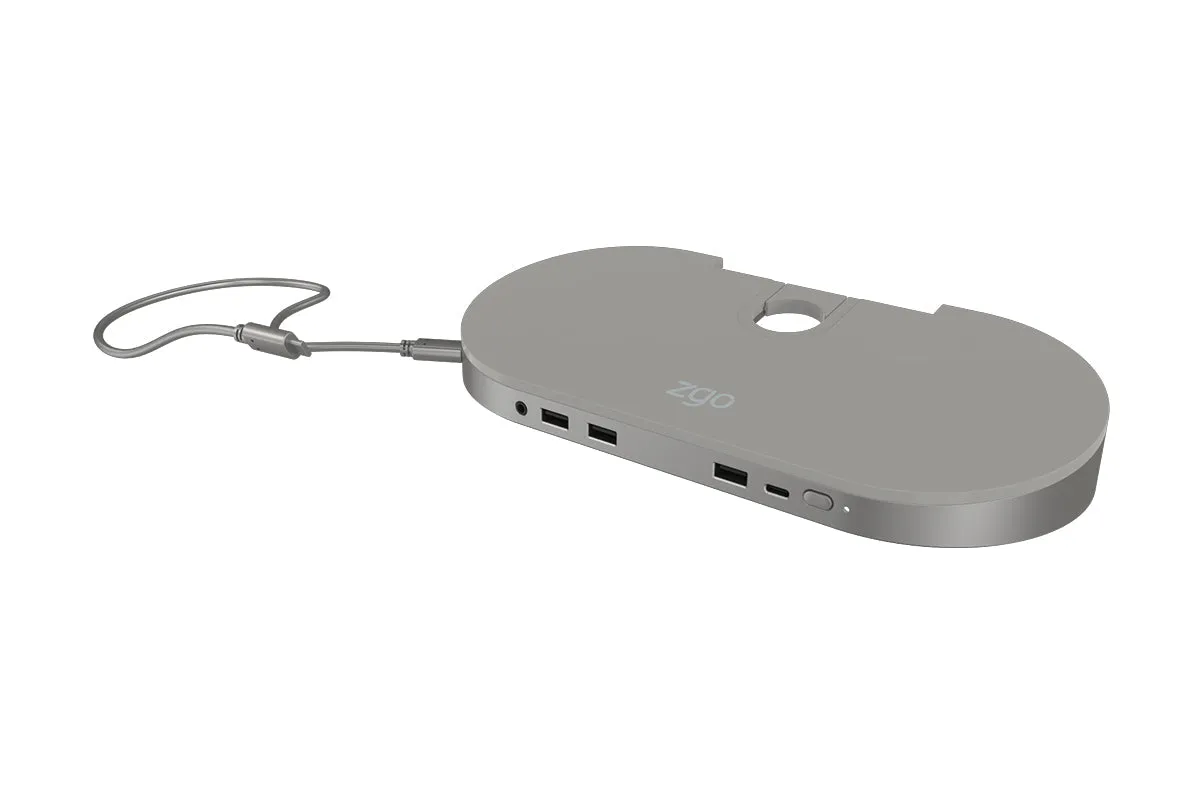

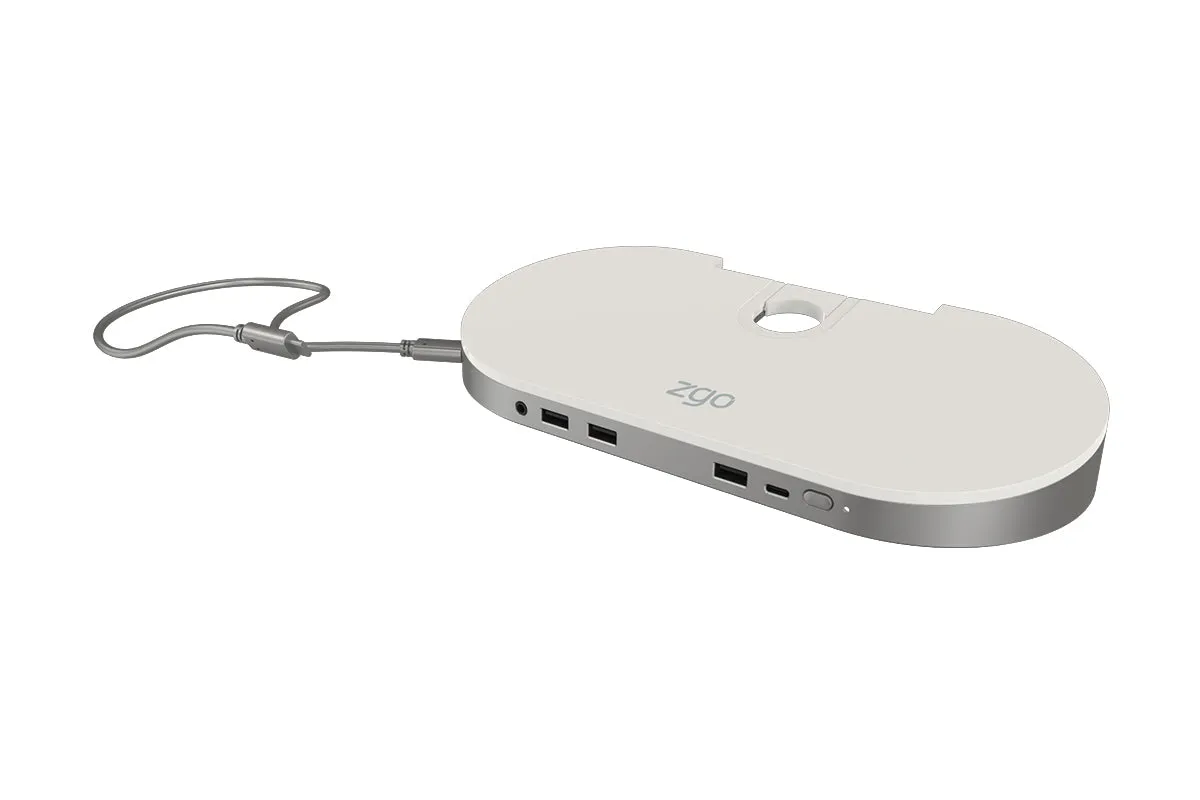

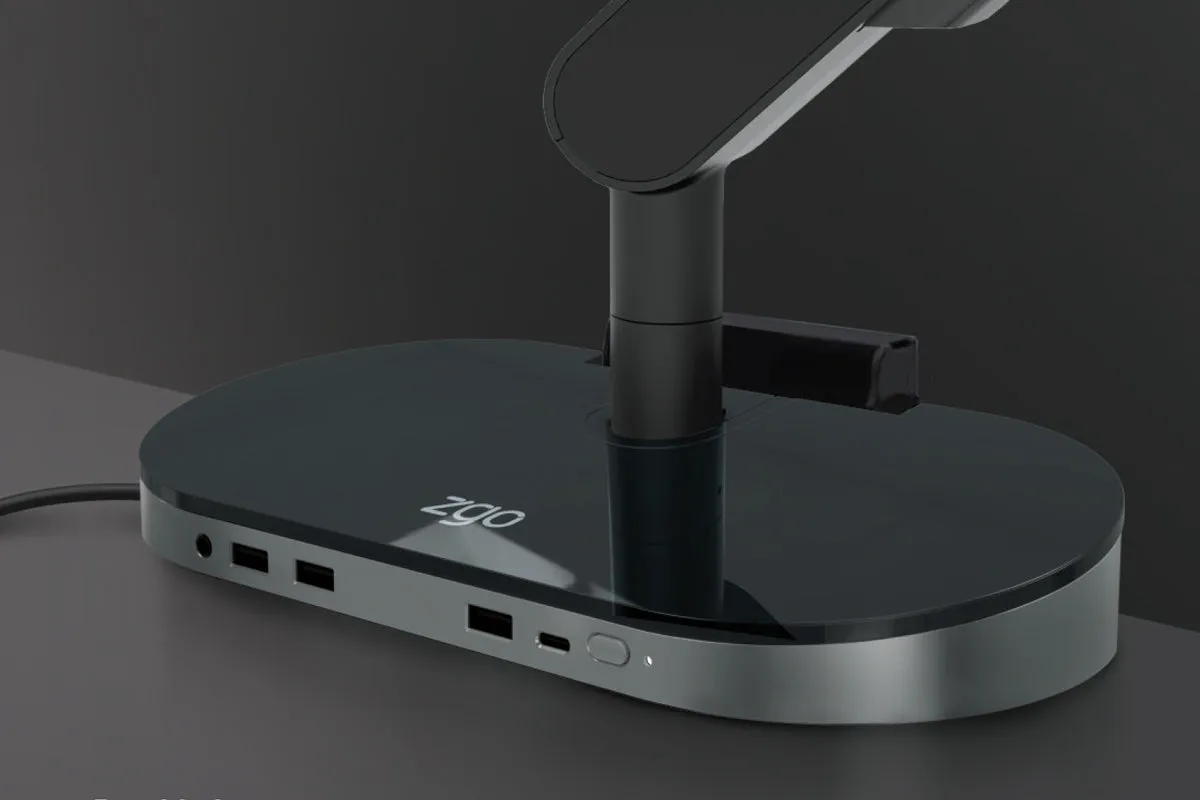

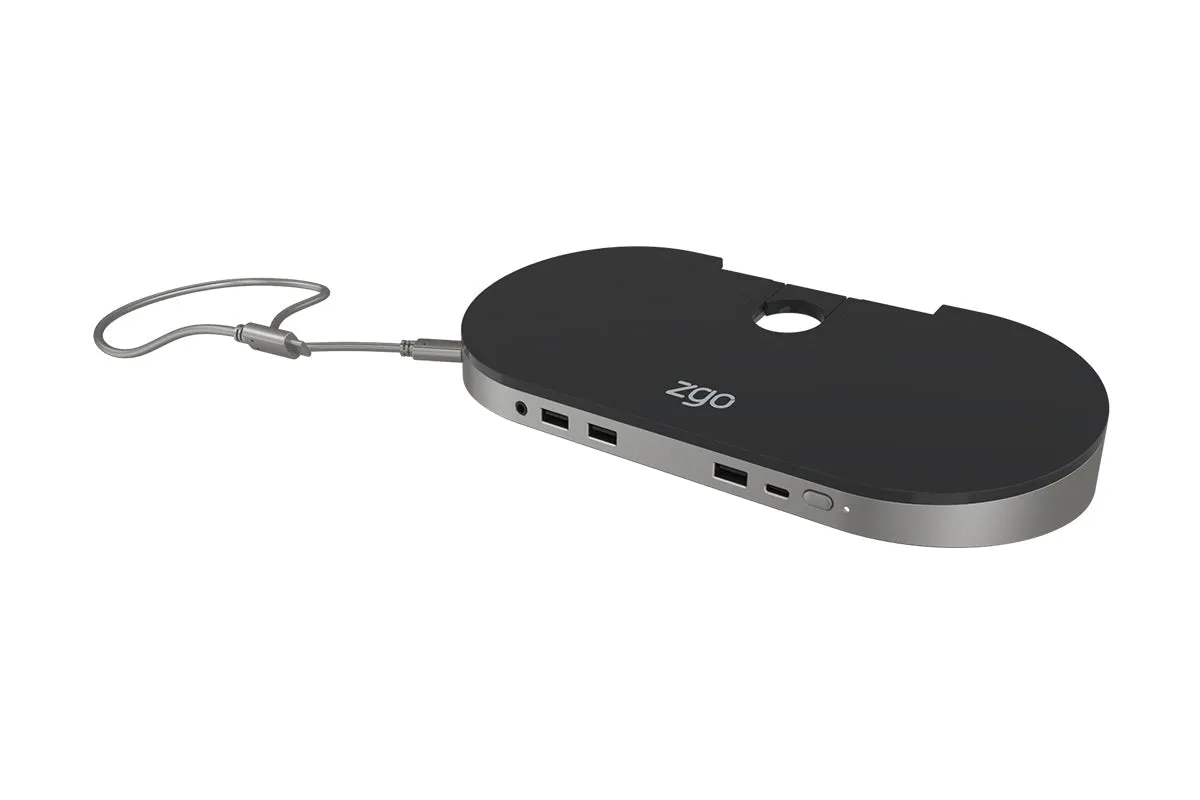

Pleased to meet you, I am the Zgo Integrated Docking Station with Data and Multi Display Option. I'm able to integrate into the base of any ZGO monitor arms. I am easily adjustable and can be moved around without ever needing to deinstall the monitor arm. I am a backward-compatible USB docking station that supports both USB-A and USB-C notebooks with up to 100w of power delivery. I offer 8 USB ports which include a high-speed Type-A and Type-C charging port. I am also available as a standalone dock and come in three colour variants - white, silver, and black.
1
2

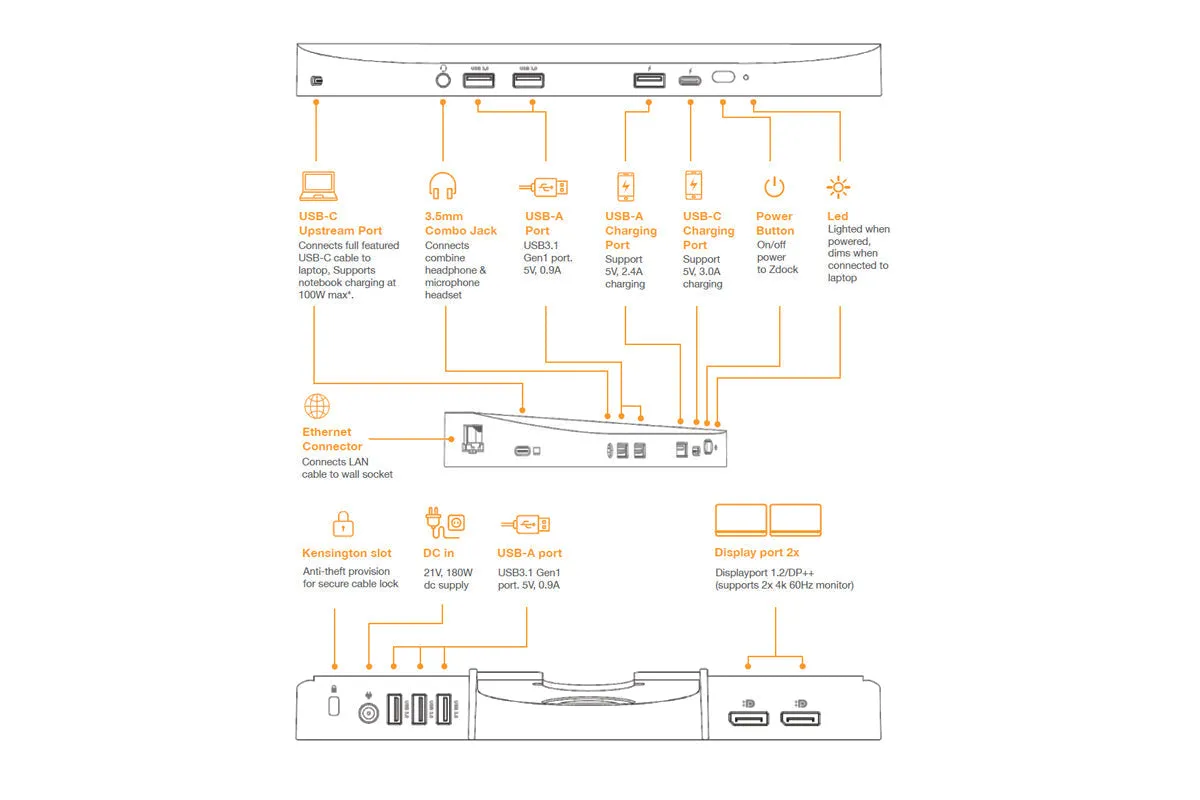

Usb-C full feature with 100W PD charging
Support PD2.0 version 1.2 (Upstream)
2x Usb-A 3.1 Gen1 (5V,0.9A max) (Downstream)
Provide instant connectivity and immediate accessibility to data and charging while eliminating all desktop cables
USB-C (5V, 3.0A max)
USB-A (5V, 2.4A max)
TRRS 3.5mm combo jack for apple/samsung type

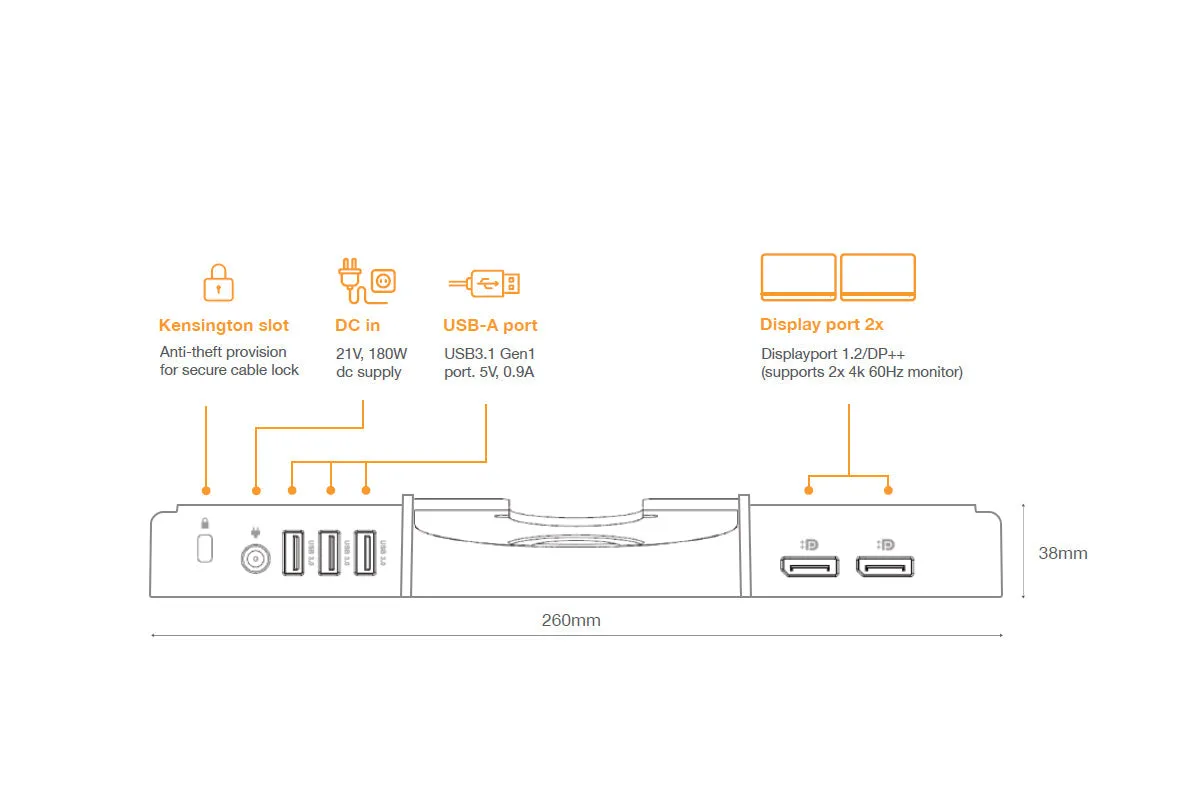

2 x DP (dual mode DP1.2)
Support:
5k - 5120x2880p60 (only 1 video connection)
4k - 3840x2160p60, 4096x2160p60
2k - 2560x1600p60, 2560x1440p60
1k - 1920x1080p60
3x Usb-A 3.1Gen1 (5V, 0.9A)
Windows 7/7Pro (32bit/64bit),
Windows 8.1/8.1Pro (32bit/64bit),
Windows 10 (32bit/64bit),
Apple OS X version 10.8.3 and above
(mountain lion v10.8, mavericks v10.9, yosemite
v10.10, El capitan v10.11(ver2.5), sierra mac
OS10.12(ver2.6)
Gigabit ethernet
Transfer rate 10Mbit/100Mbit/1Gbit
Operating: 0°C to 40°C
Non operating: -20°C to 60°C
Operating: 10% to 80% (non-condensing 5 to 35oC)
Non operating: 5% to 90% (non-condensing -20 to 60oC
Operating: sea level to 5000m
Non operating: 5000m
Input voltage: 90 – 264V (47-63Hz)
Output voltage: 20V ( /- 5%), 7.5A, 150W
Efficiency: meets US DoE VI
Mainscord: mickey mouse(IEC60320-C5), 1.8m
1x USB-C full feature cable, 1.0m with USB-C to USB-A adapter
Easily retrofits at any time and available as a stand alone
Increases usable workspace and provides a cleaner, more streamlined appearance
Slides over the base of the arm without ever needing to de-install the monitor arm to add or replace the dock
Designed to meet RoHS and WEEE directives
warranty
This Product is guaranteed for a period of one year against faulty workmanship and/or raw materials for normal office use - i.e. 8 working hours per day. For more info please call 1300 527 665 or email [email protected]
